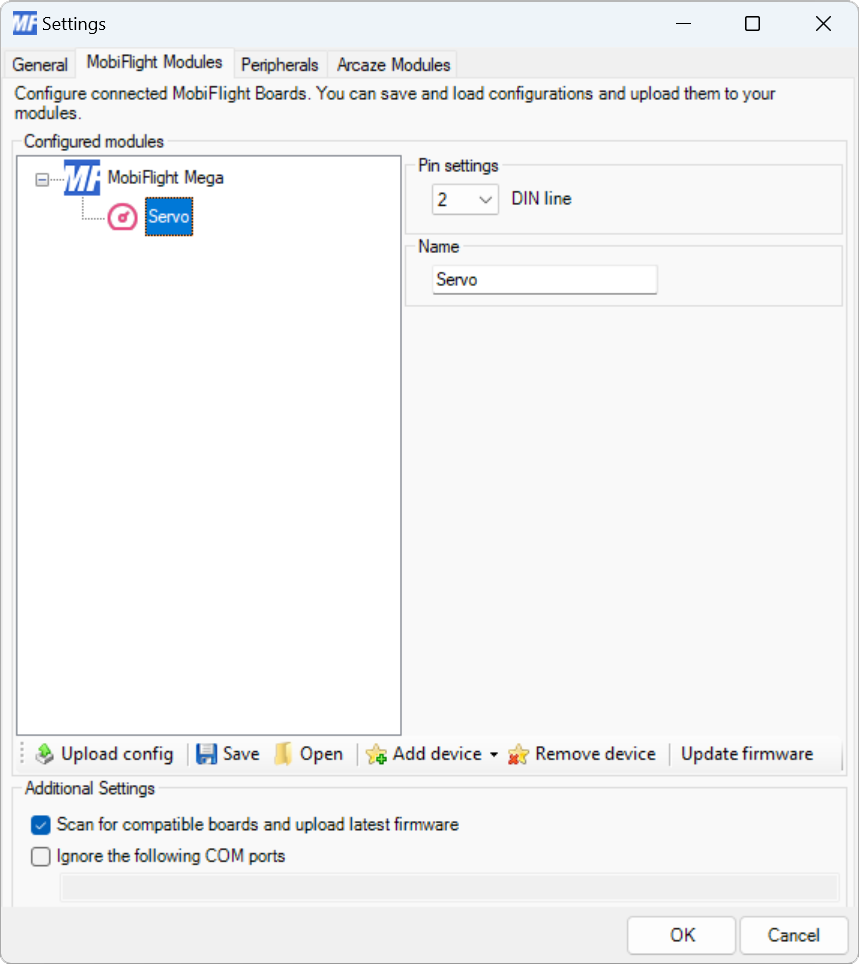

Modules dialog

Setting	Description
DIN line	The board pin connected to the servo. All digital and analog pins are supported.
Name	The name for the servo. Displayed in the output configuration dialog to identify the servo when mapping the simulator output.

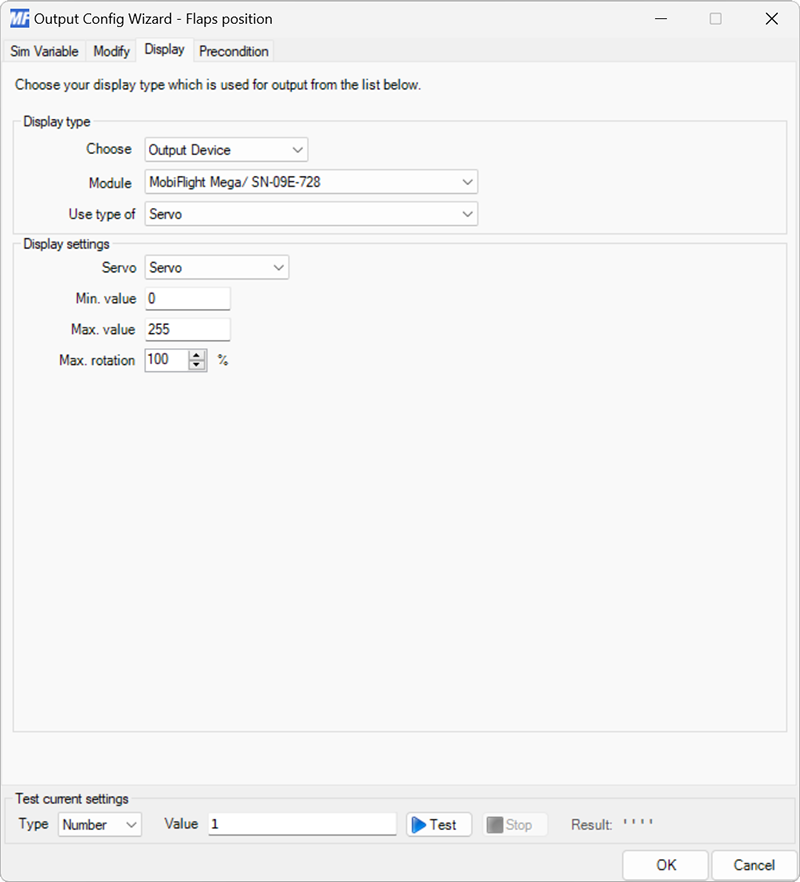

Output display configuration

Setting	Description
Servo	Selects the servo to display the value on.
Min. value	Sets the minimum value expected from the variable defined on the Sim Variable tab.
Max. value	Sets the maximum value expected from the variable defined on the Sim Variable tab.
Max. rotation	Sets the amount of the servo range to use for value display.

The Min. value and Max. value settings are used to scale the simulator variable value to a range of 0–100%. The Max. rotation setting is used to scale the value to a smaller range than 0-100.
