Adding the device

Open the settings dialog to edit modules

Click on the Extras menu and select Settings to open the settings dialog.

Screenshot of the Extras menu with the Settings menu item selected.

Then click on the MobiFlight Modules tab to display the modules.

Screenshot of the Settings dialog with the MobiFlight Modules tab highlighted.

Add the servo

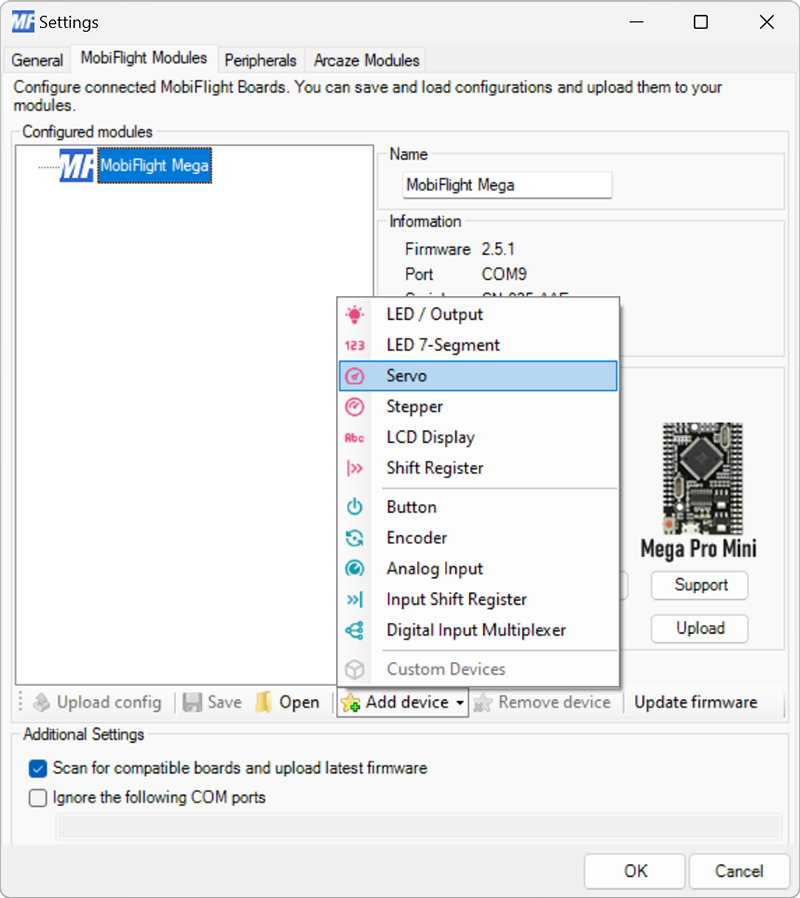

Click on the board the device is connected, then select Servo from the Add device menu.

Screenshot of the menu open with the Servo item highlighted.

Configure the servo

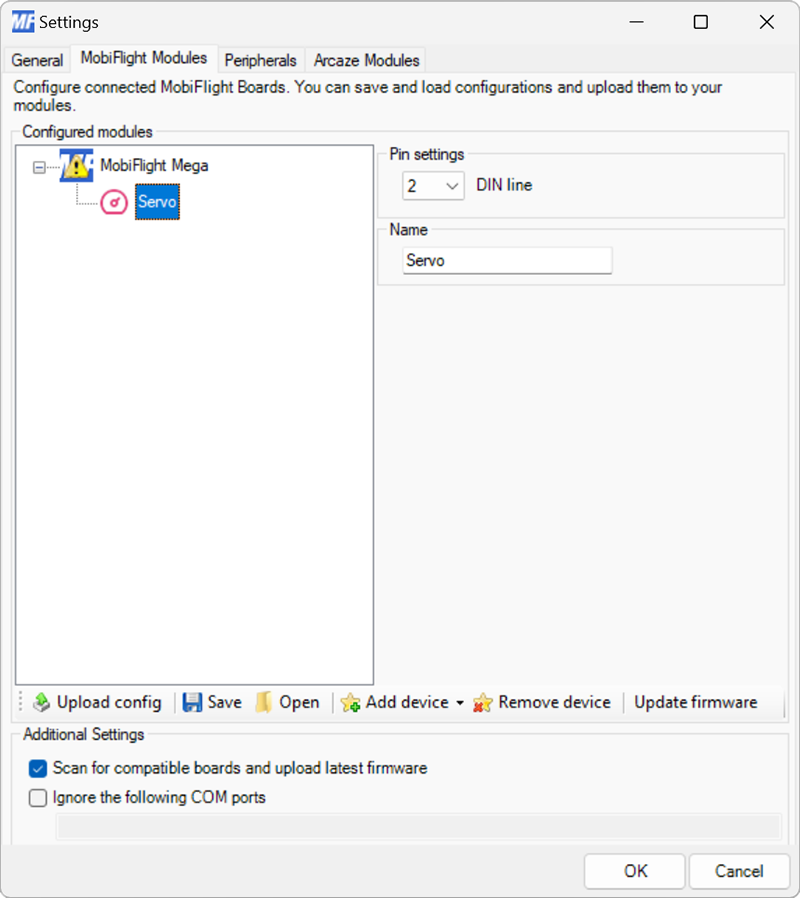

Use the DIN line dropdown to specify the board pin the servo is connected to.

Provide a meaningful name for the servo in the Name field. This name is shown in the output configuration screens when assigning the servo to a flight simulator output.

Screenshot of the settings for a servo, with pin 2 selected and Servo as the name.

Upload the changes to the board

Click the Upload config button at the bottom of the MobiFlight Modules tab to upload the modified configuration to the board.

Screenshot of the MobiFlight Module dialog with the Upload config highlighted.

Close the MobiFlight modules dialog

Click the OK button to close the MobiFlight modules dialog and return to the main app window.
